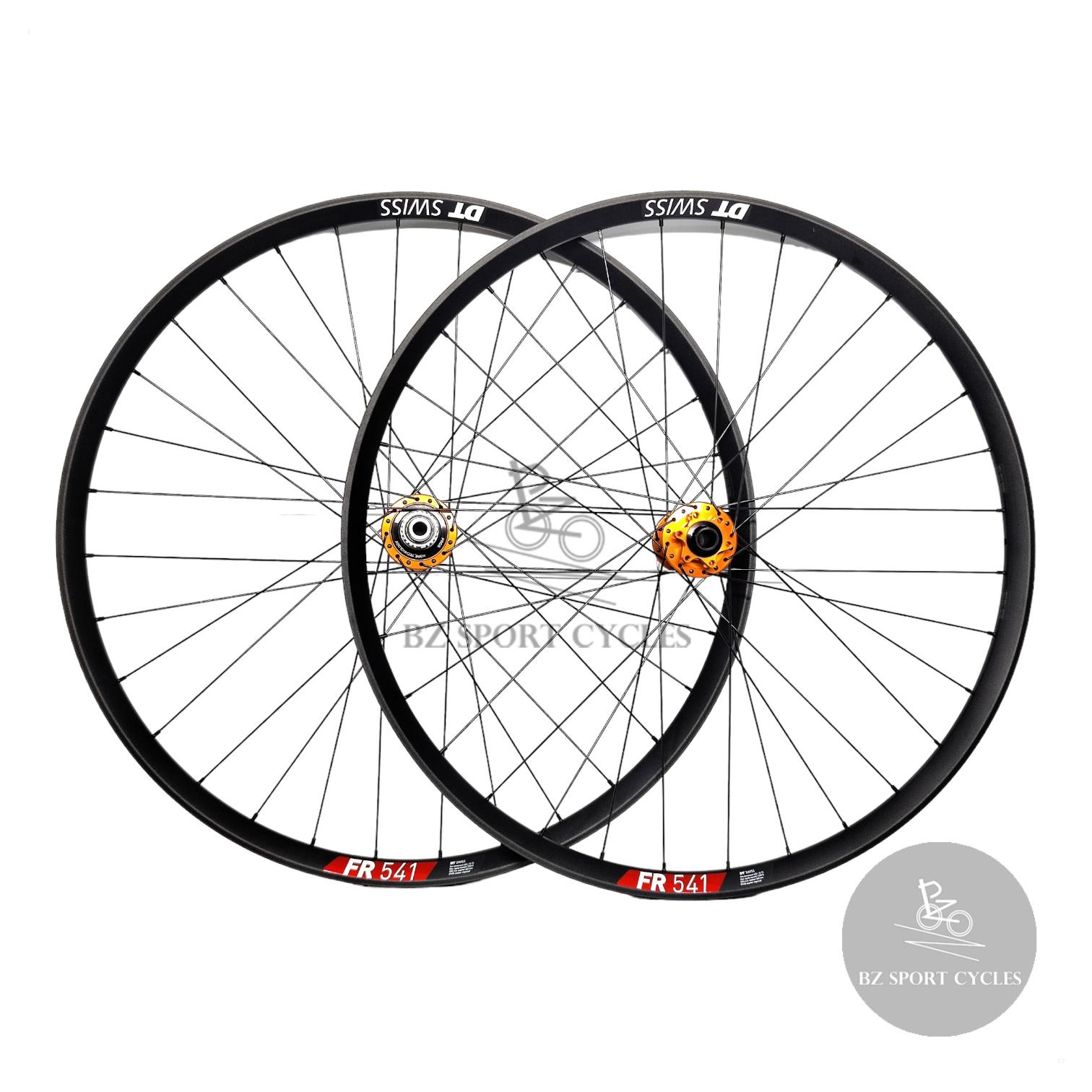

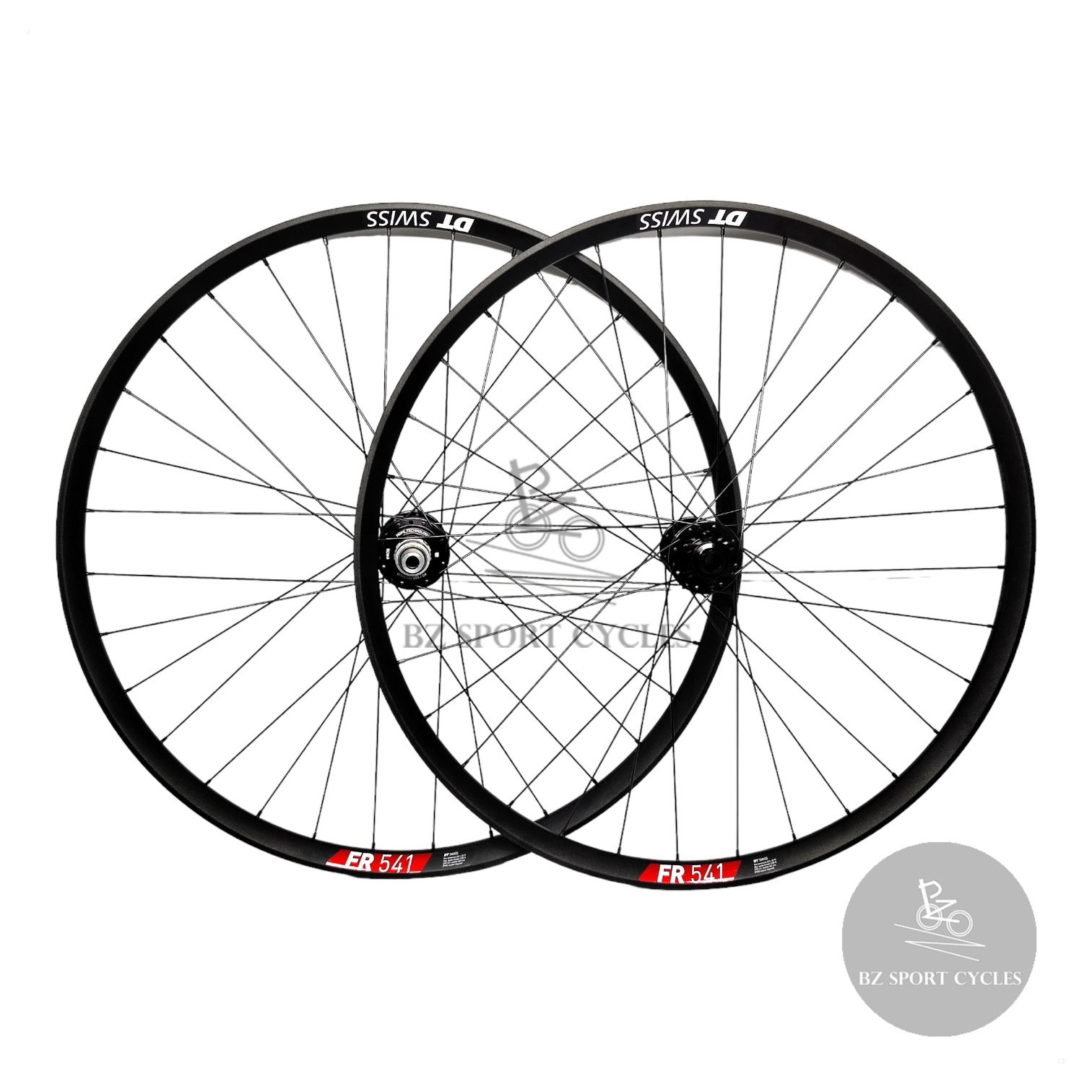

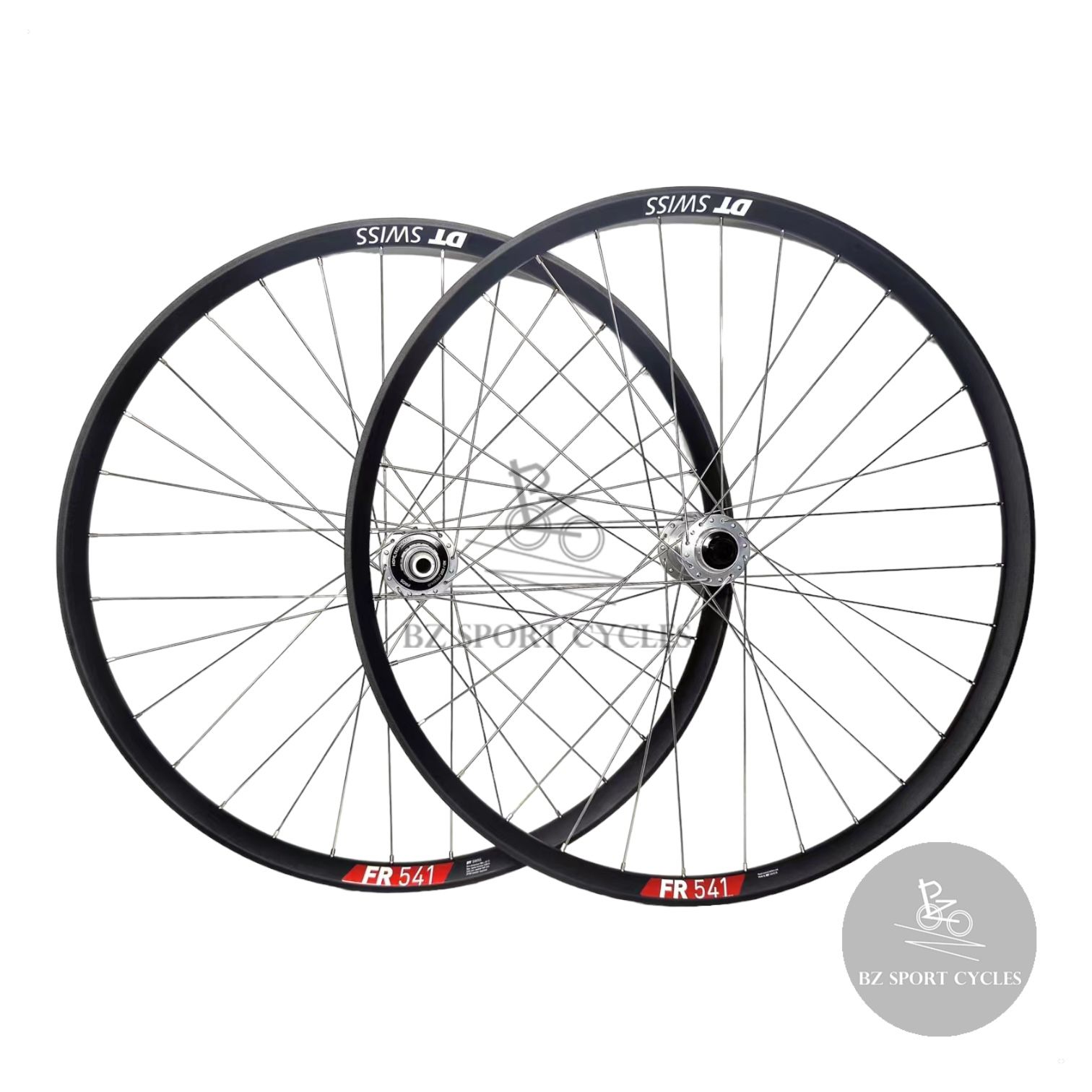

BZ CUSTOM HAND-BUILT MTB/GRAVEL BIKE WHEELS
Wheel Size: 27.5inch / 29inch
Spoke Count: 32H / 32H
Valve Type: Presta Valve
Weight: 2,000±20g
Weight Limit (Rider): Max 120kg
Cassette Compatibility: Shimano HG / Shimano Micro Spline / Sram XD
RIM
OPTION 1 – DT Swiss FR 541 | OPTION 2 – DT Swiss EX 471

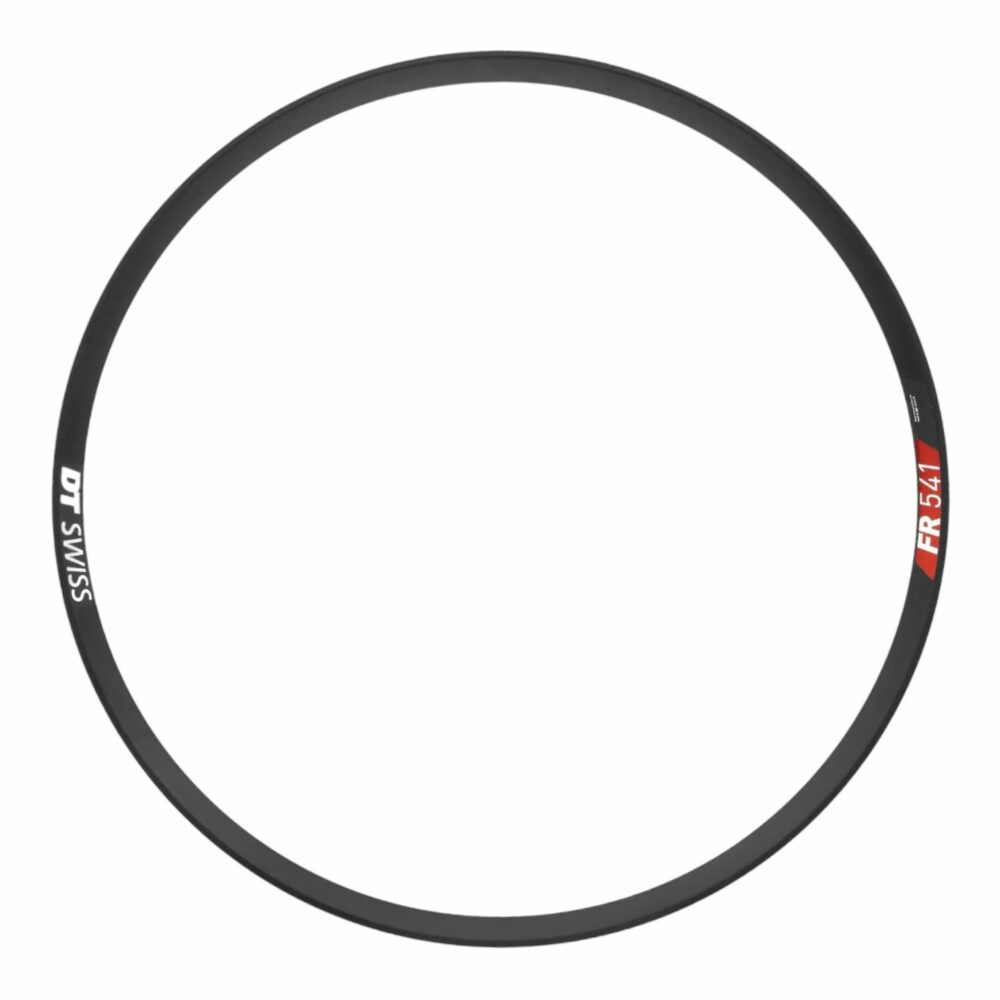

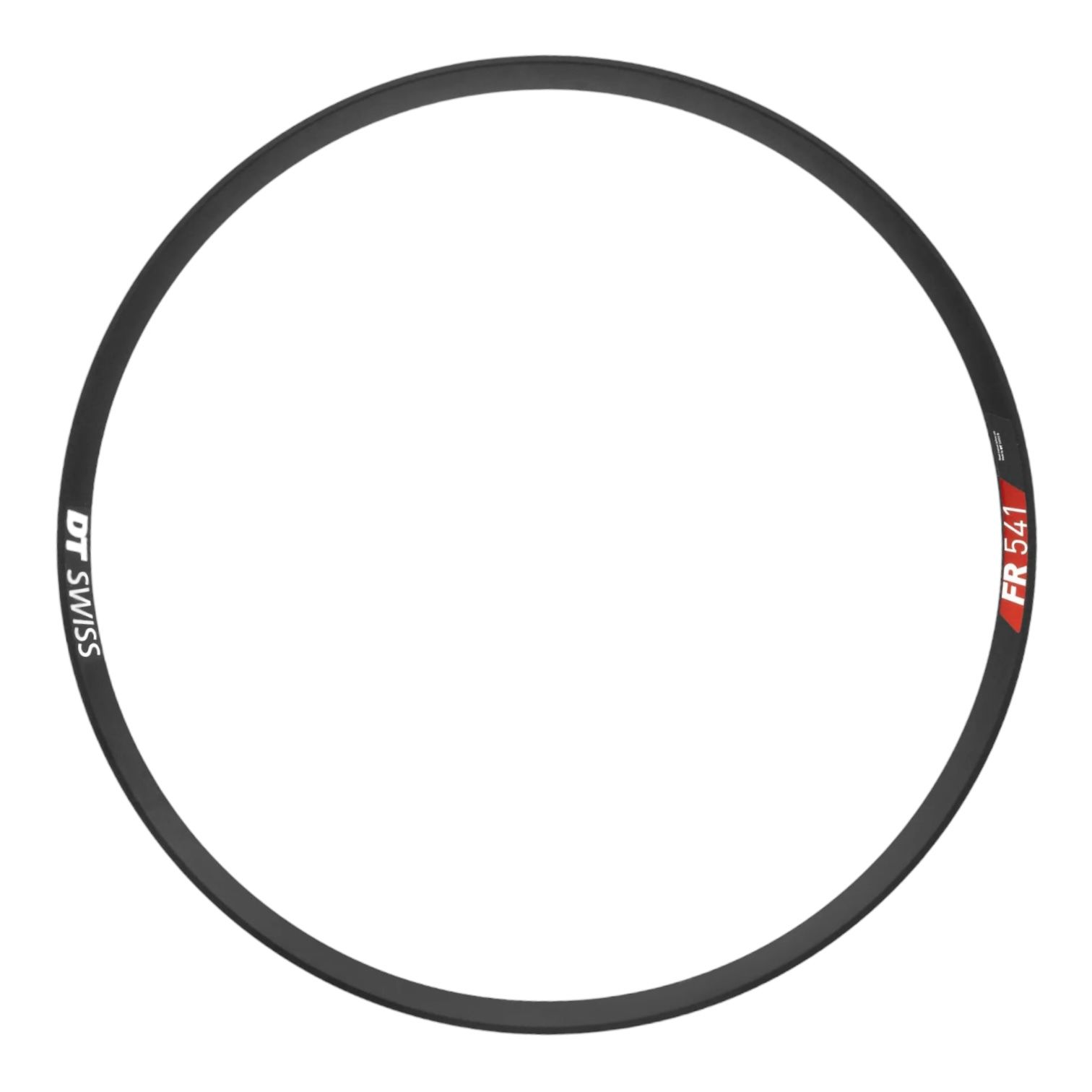

OPTION 1

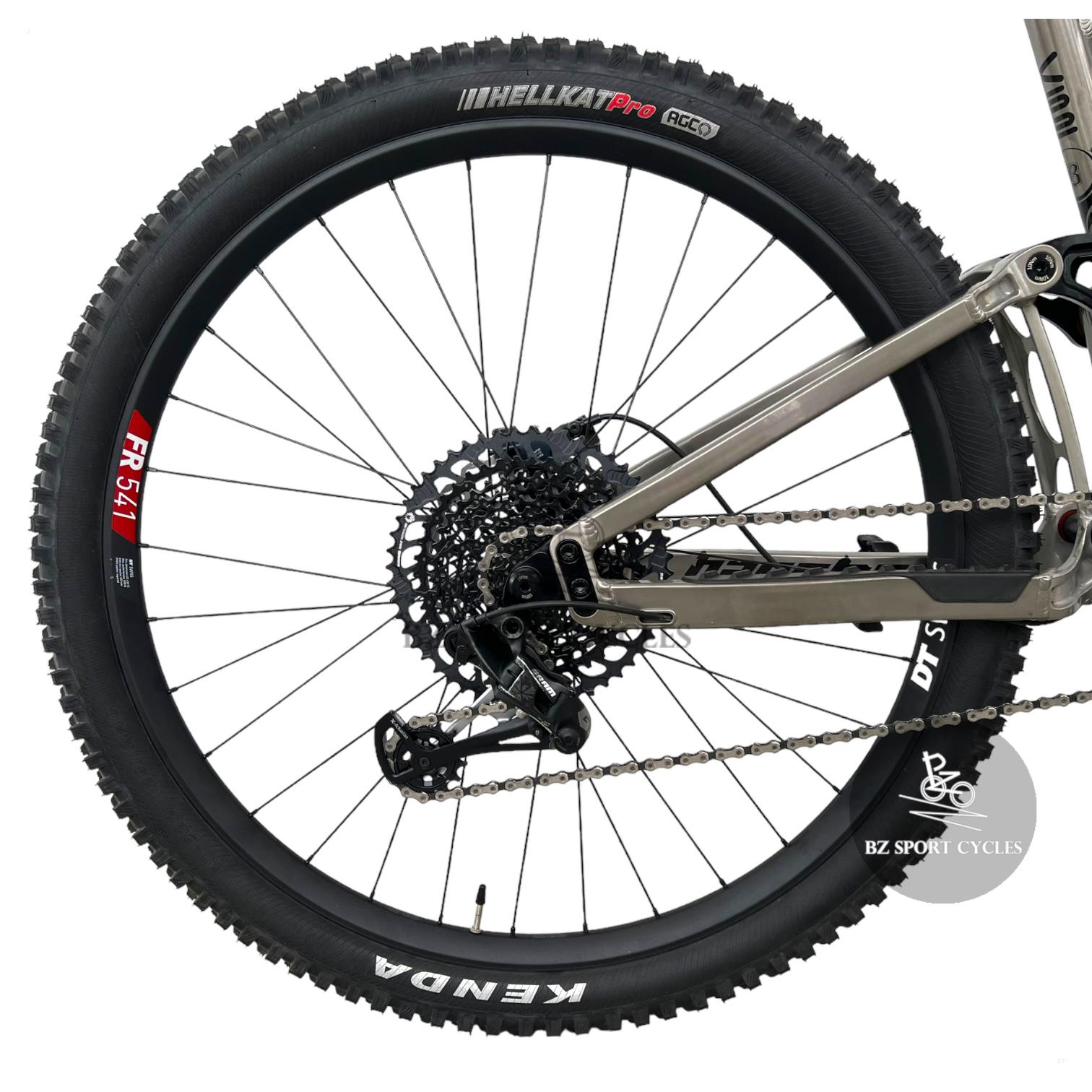

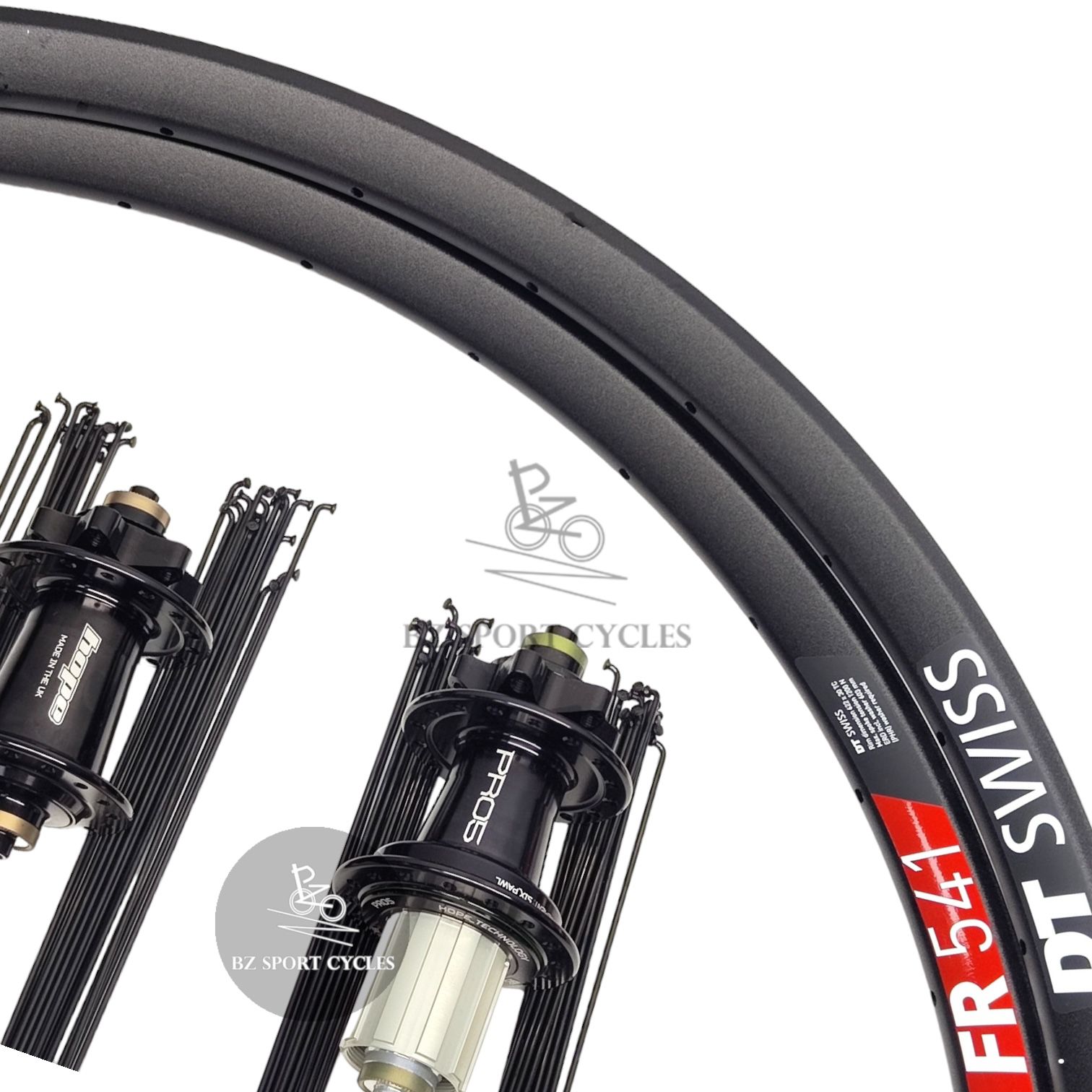

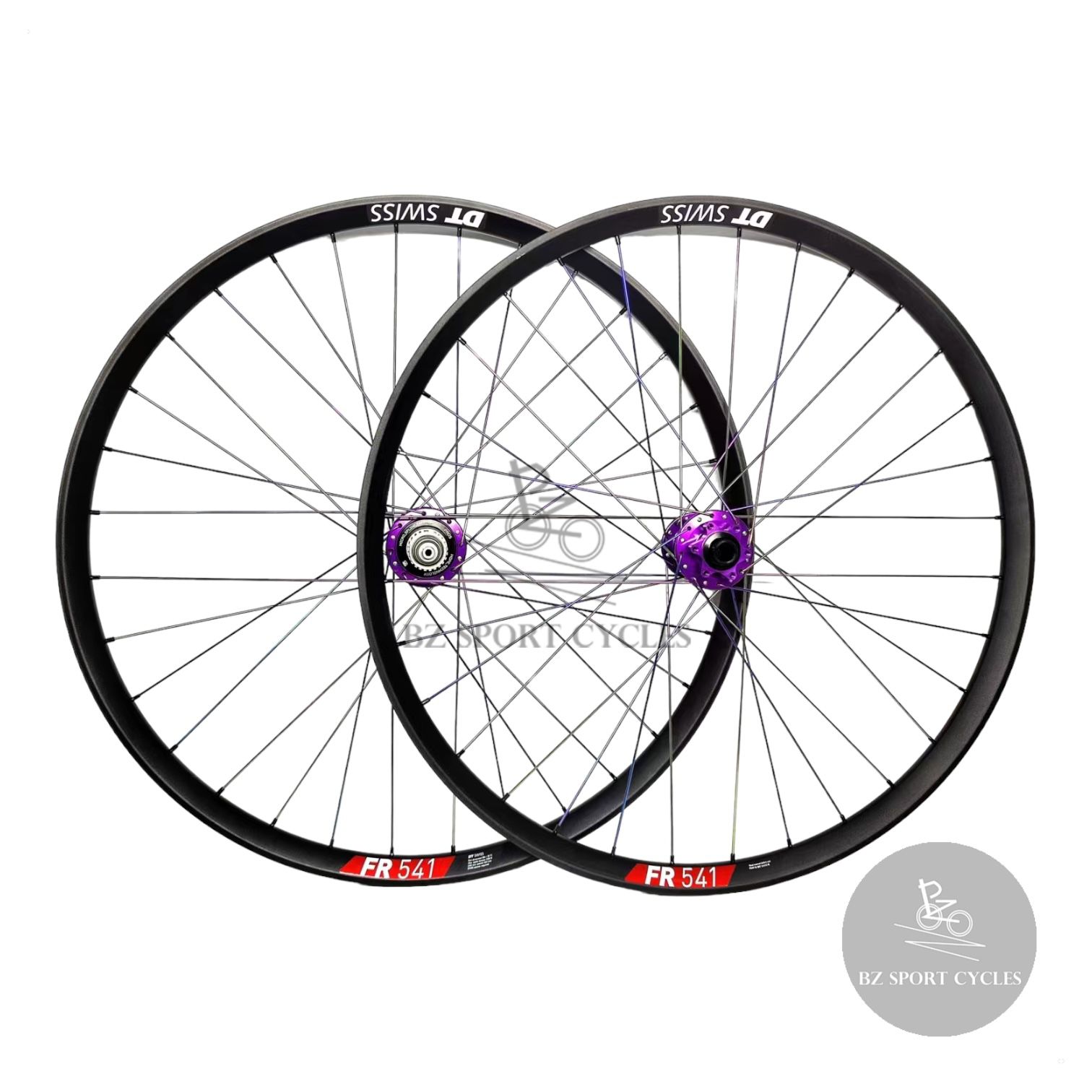

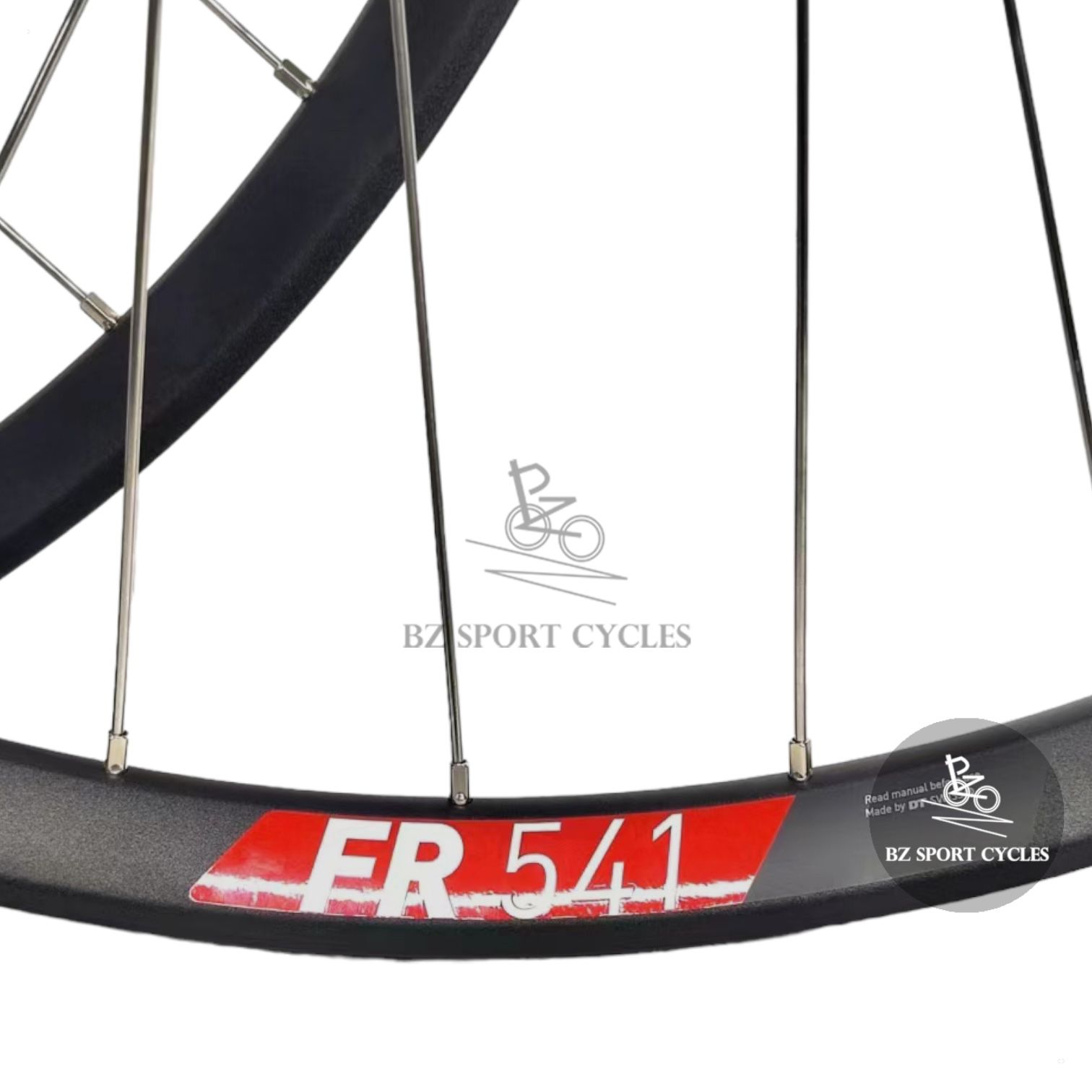

Brand/Model: DT Swiss FR 541
Material: Aluminum
Outer Width: 35mm
Inner Width: 30mm
Rim Height: 21mm
Holes: 32H / 32H
Colour: Black

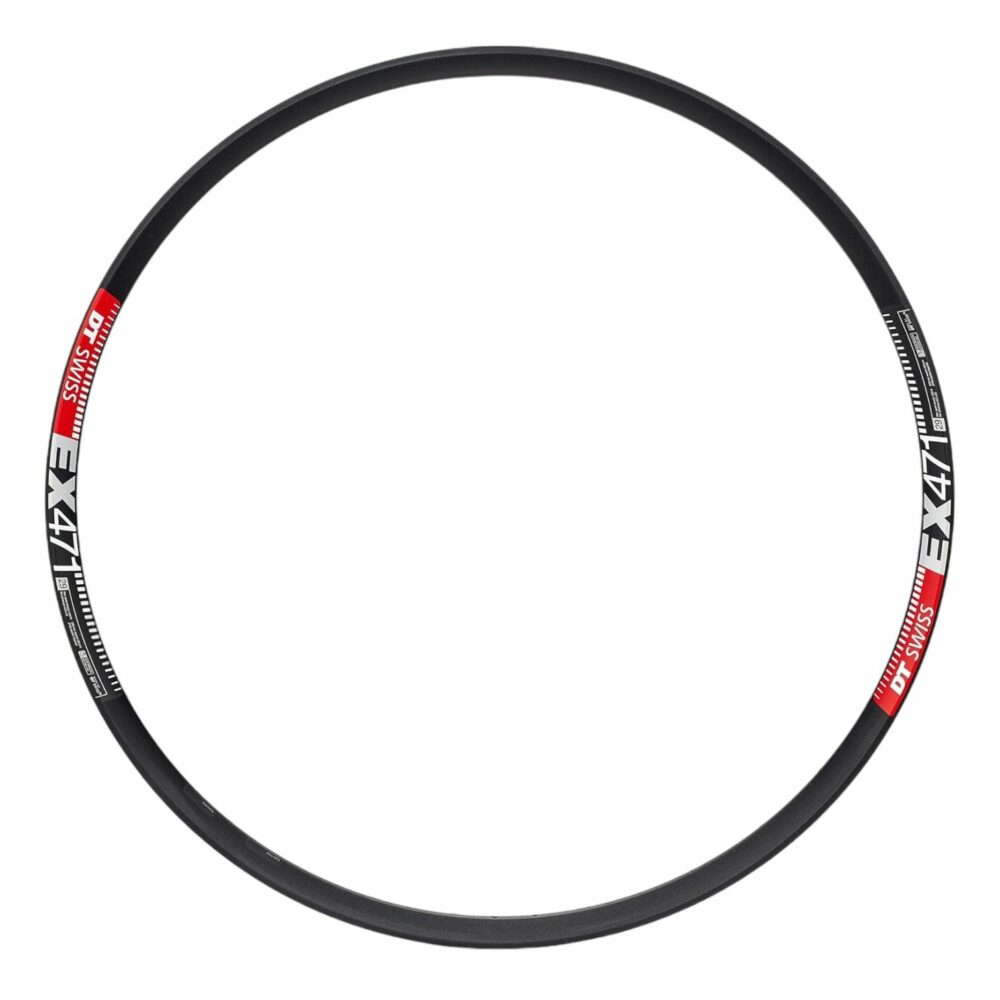

OPTION 2

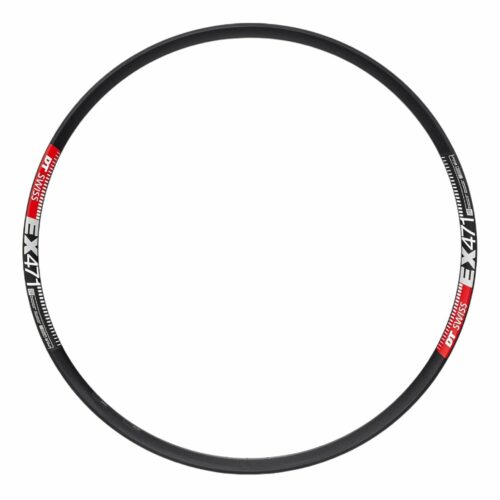

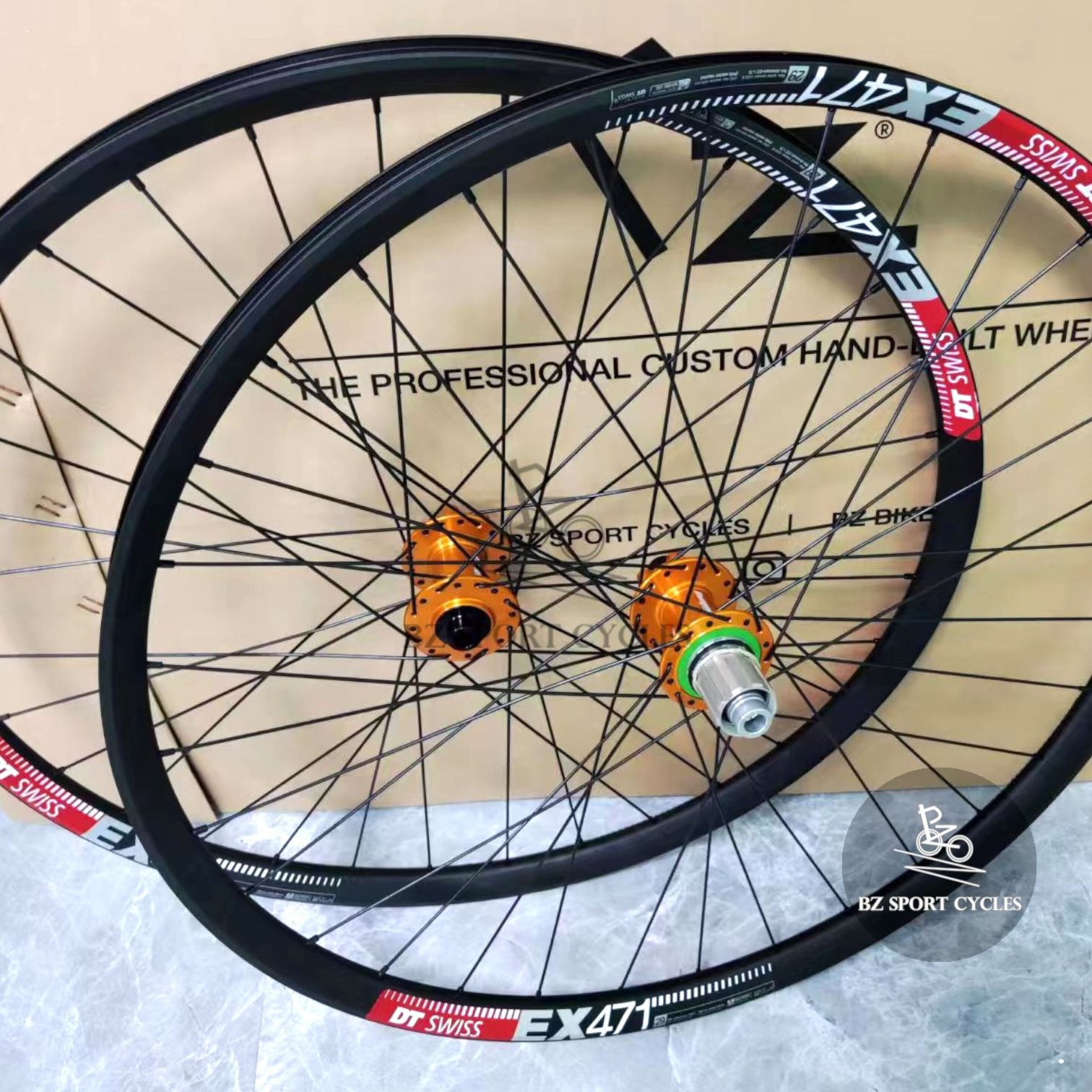

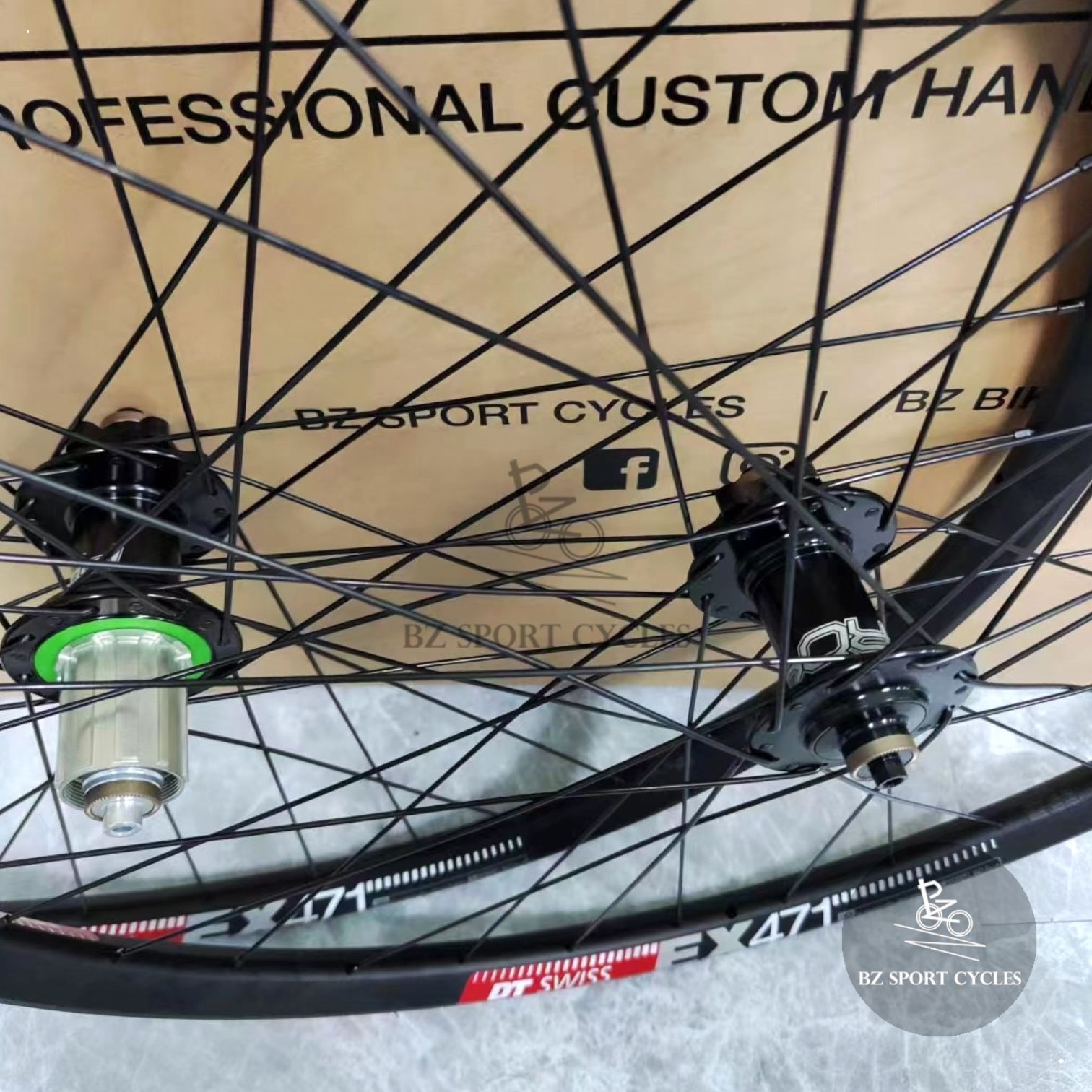

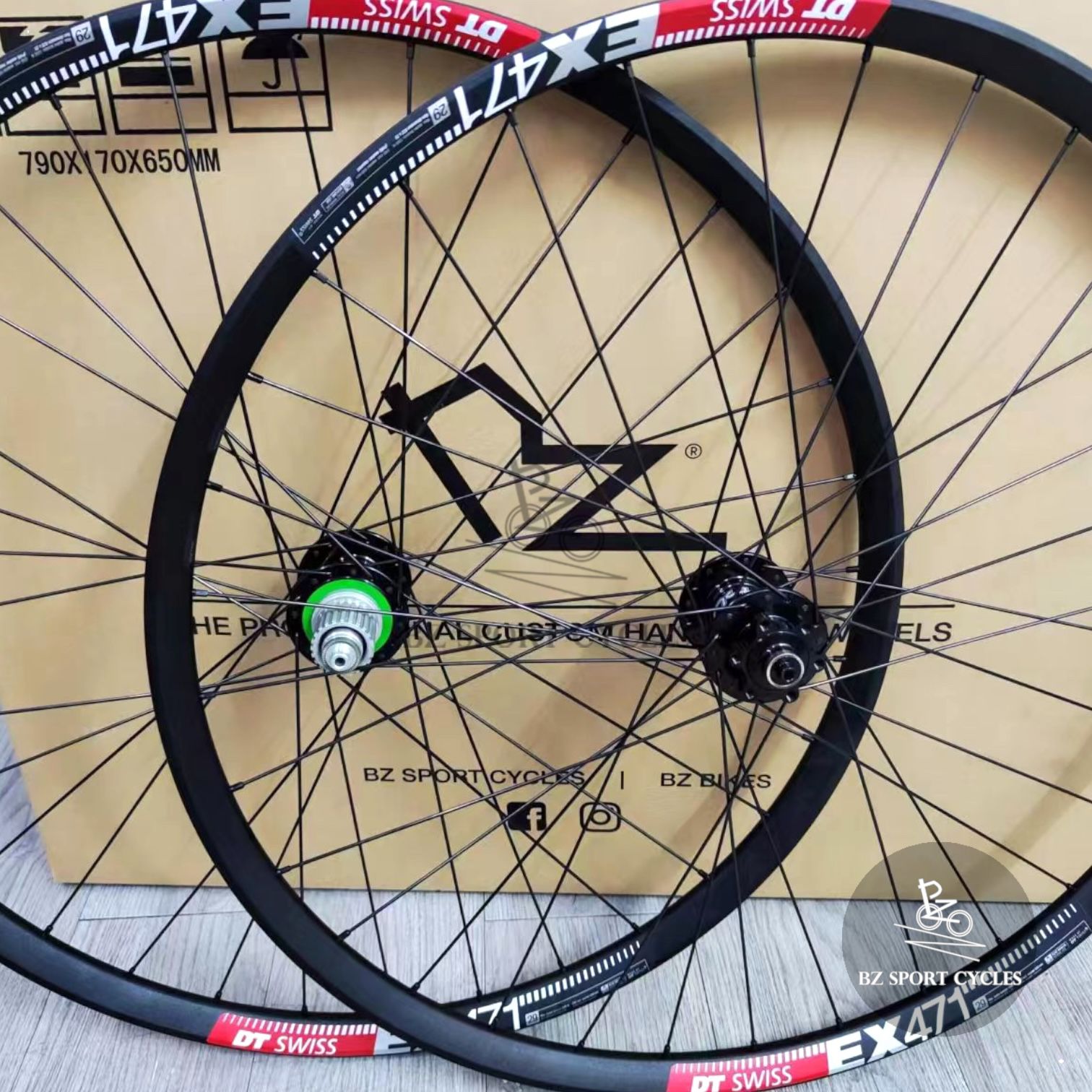

Brand/Model: DT Swiss EX 471
Material: Aluminum
Outer Width: 30mm
Inner Width: 25mm
Height: 21mm
Holes: 32H / 32H
Colour: Black
HUB
OPTION 1 – Hope Tech Pro 4 | OPTION 2 – Hope Tech Pro 5
OPTION 1

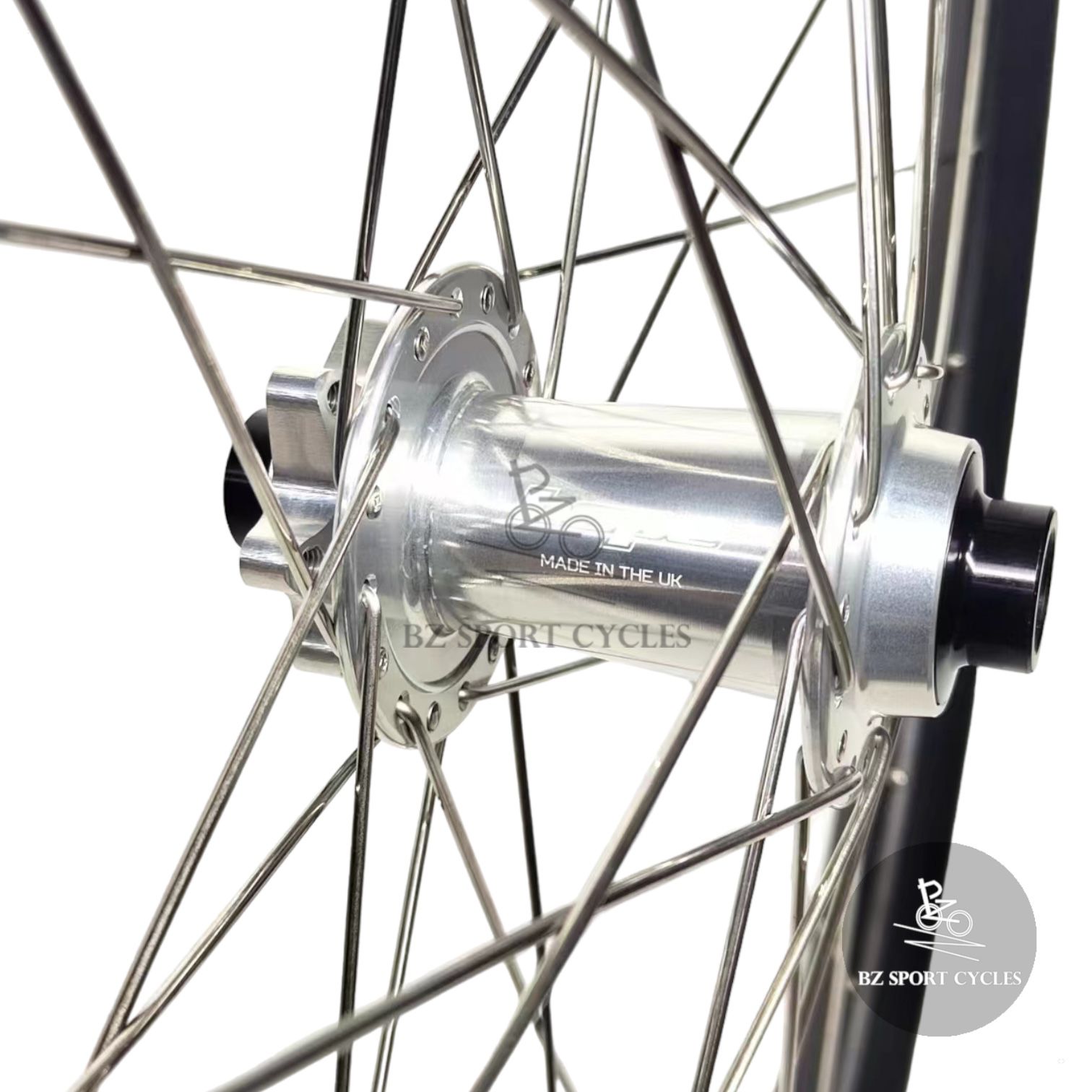

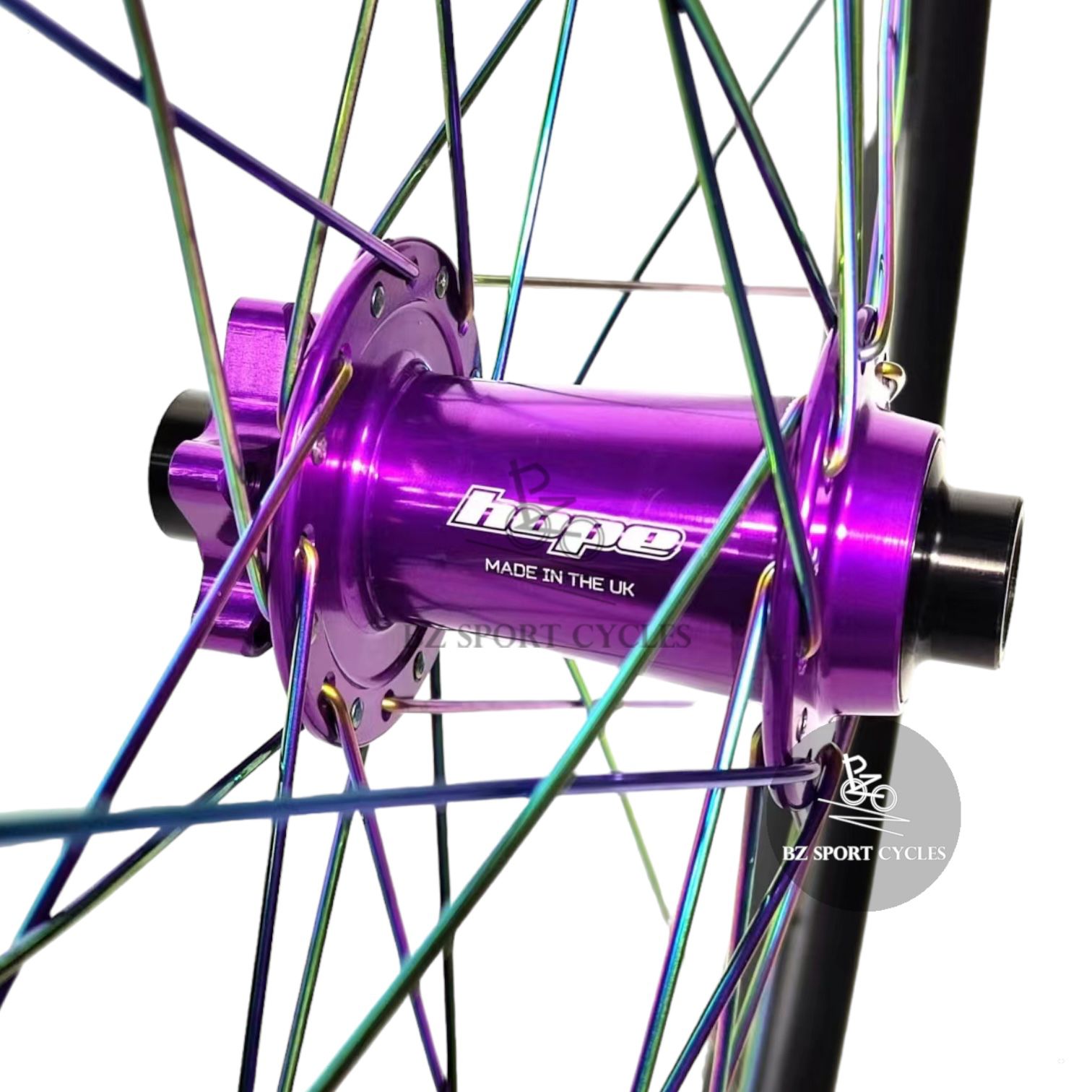

[Front Hub]

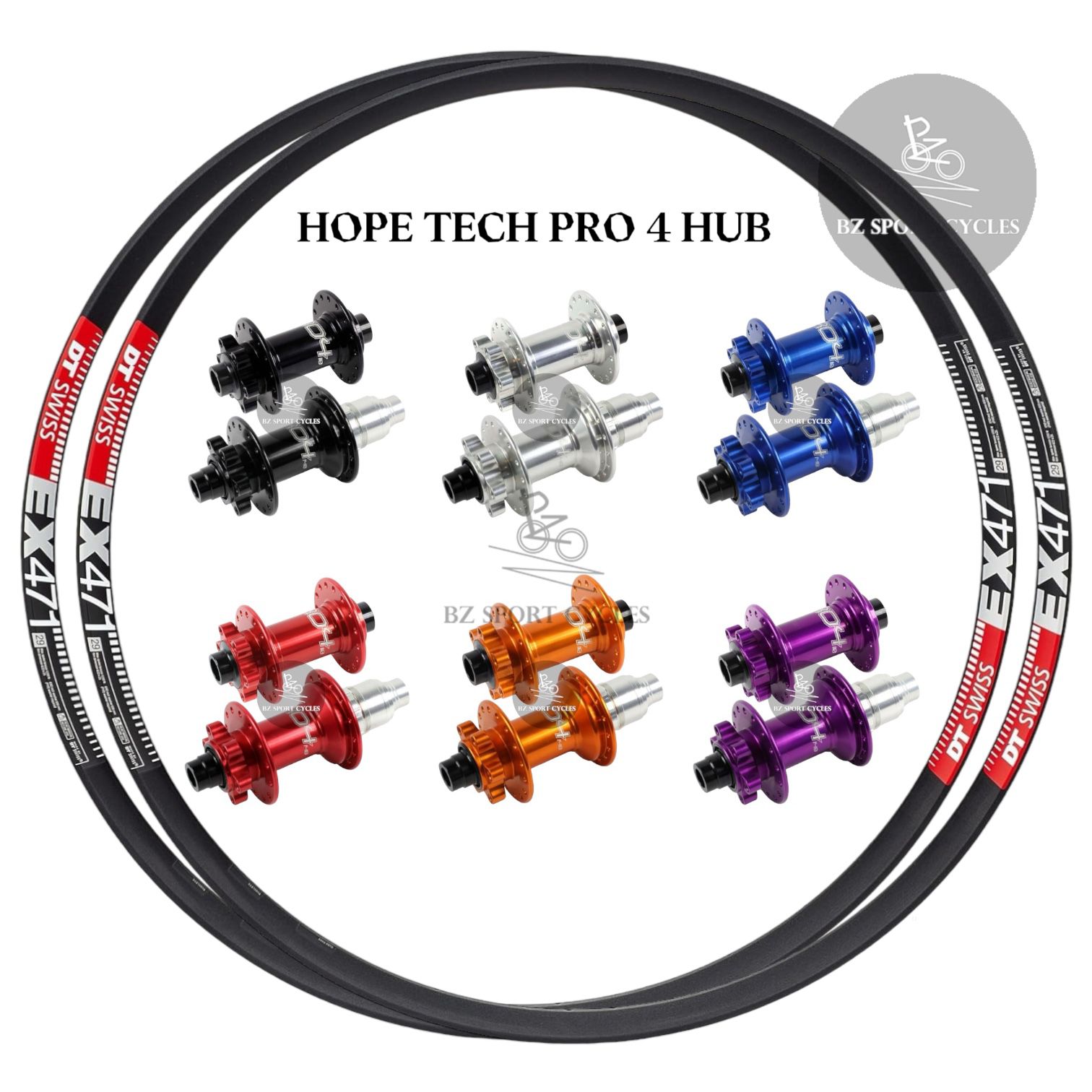

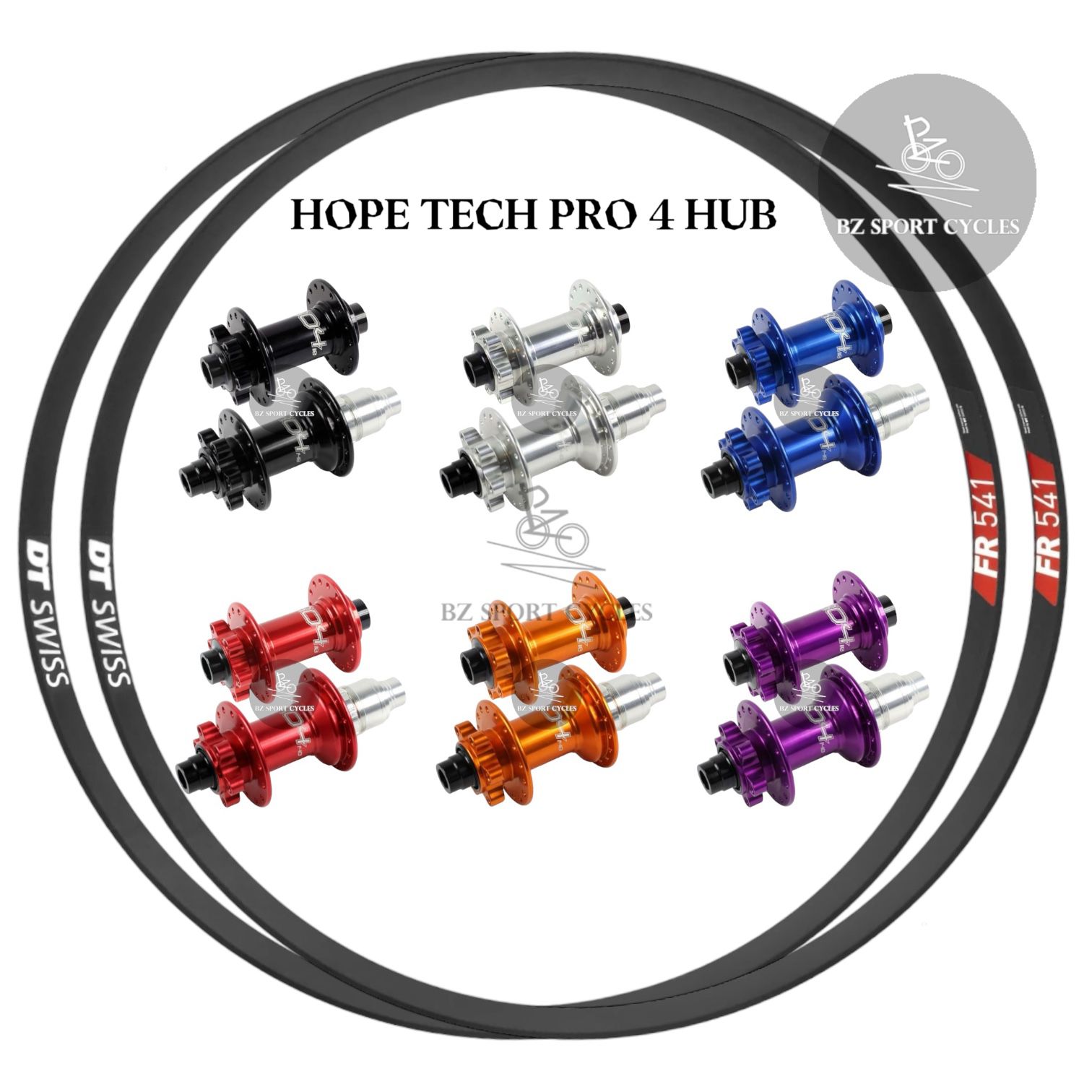

Brand/Model: Hope Tech Pro 4
Material: Aluminum
Disc Mount: 6-Bolt
Axle System: 15mm Thru Axle
Built-In Dimension: 100mm / 110mm Boost
Spoke Count: 32H
Colour: Black | Silver | Blue | Red | Orange | Purple

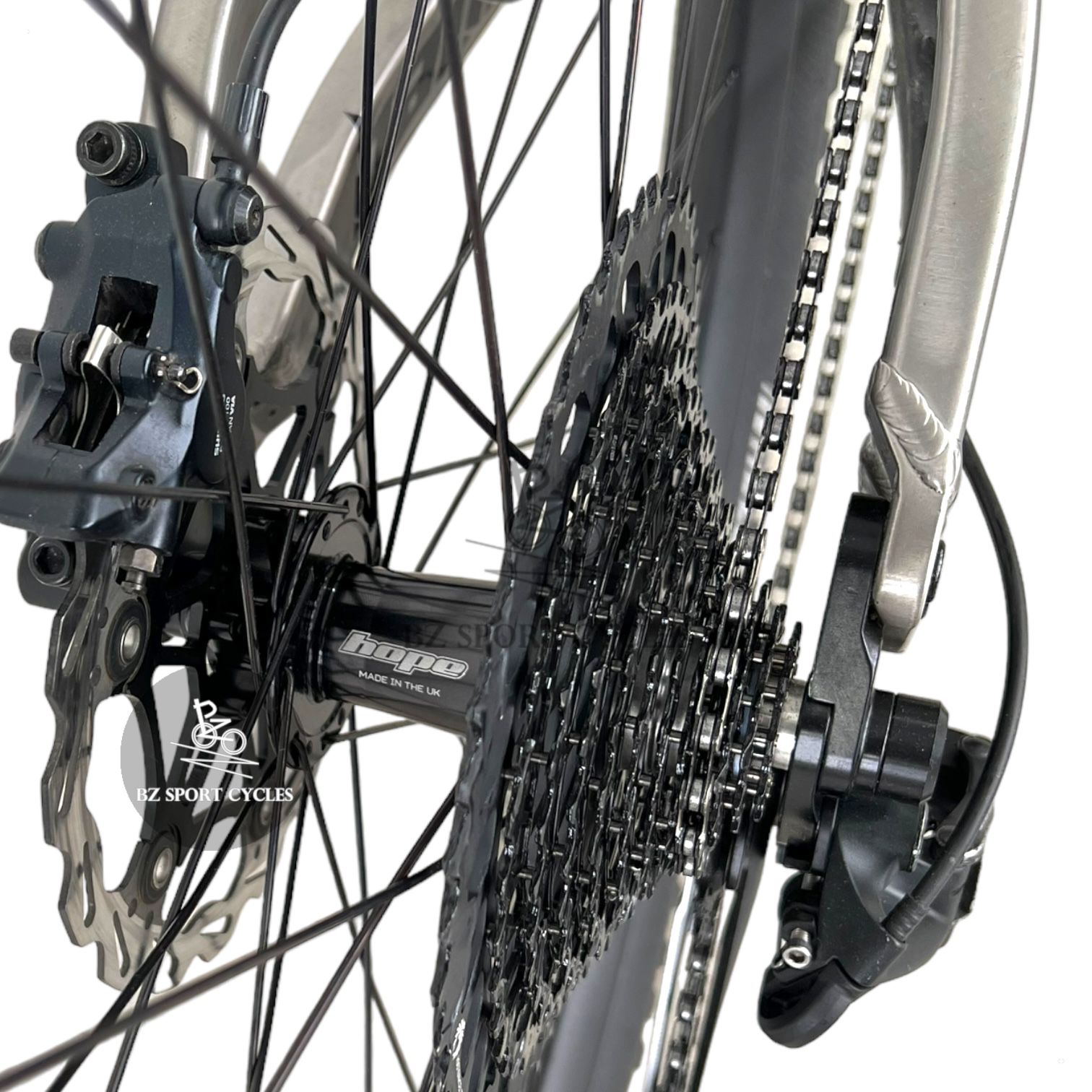

[Rear Hub]
Brand/Model: Hope Tech Pro 4
Material: Aluminum
Disc Mount: 6-Bolt
Freehub System: 6-Pawl
Axle System: 10mm QR / 12mm Thru Axle
Built-In Dimension: 135mm / 142mm / 148mm Boost
Spoke Count: 32H
Colour: Black | Silver | Blue | Red | Orange | Purple

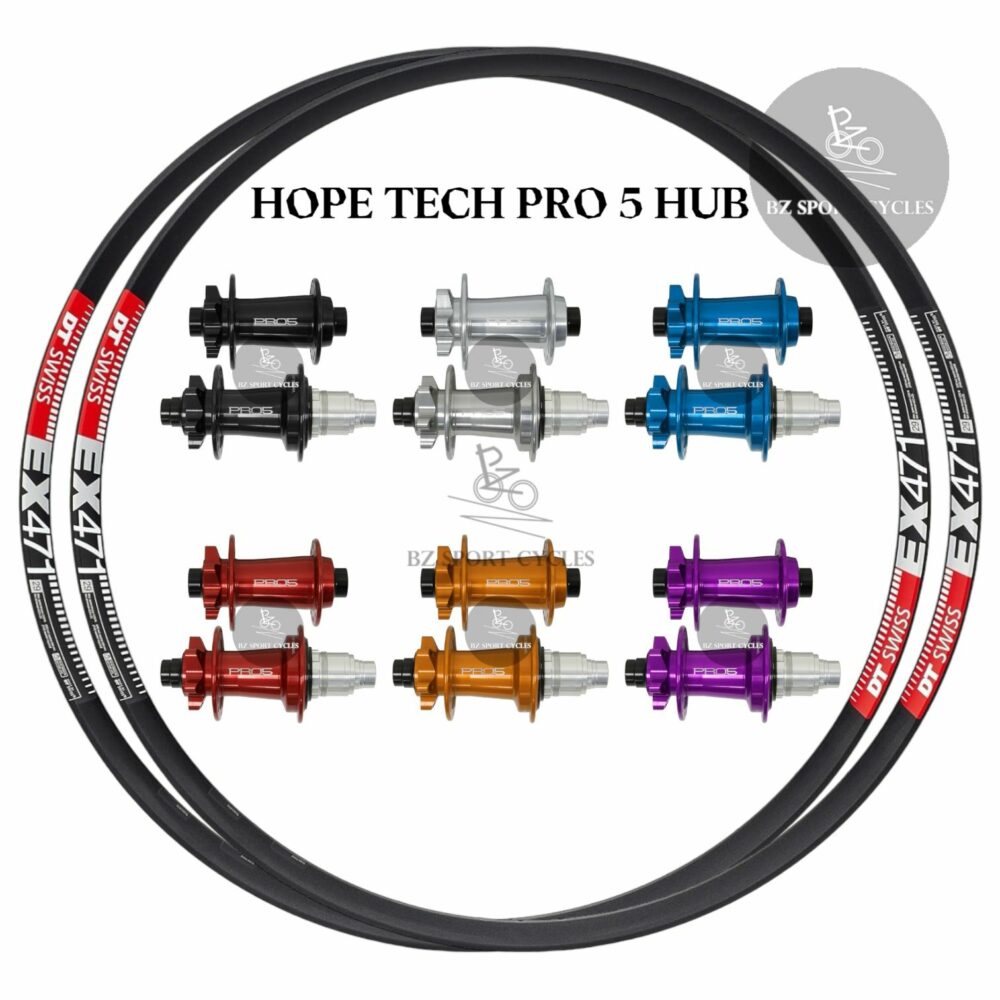

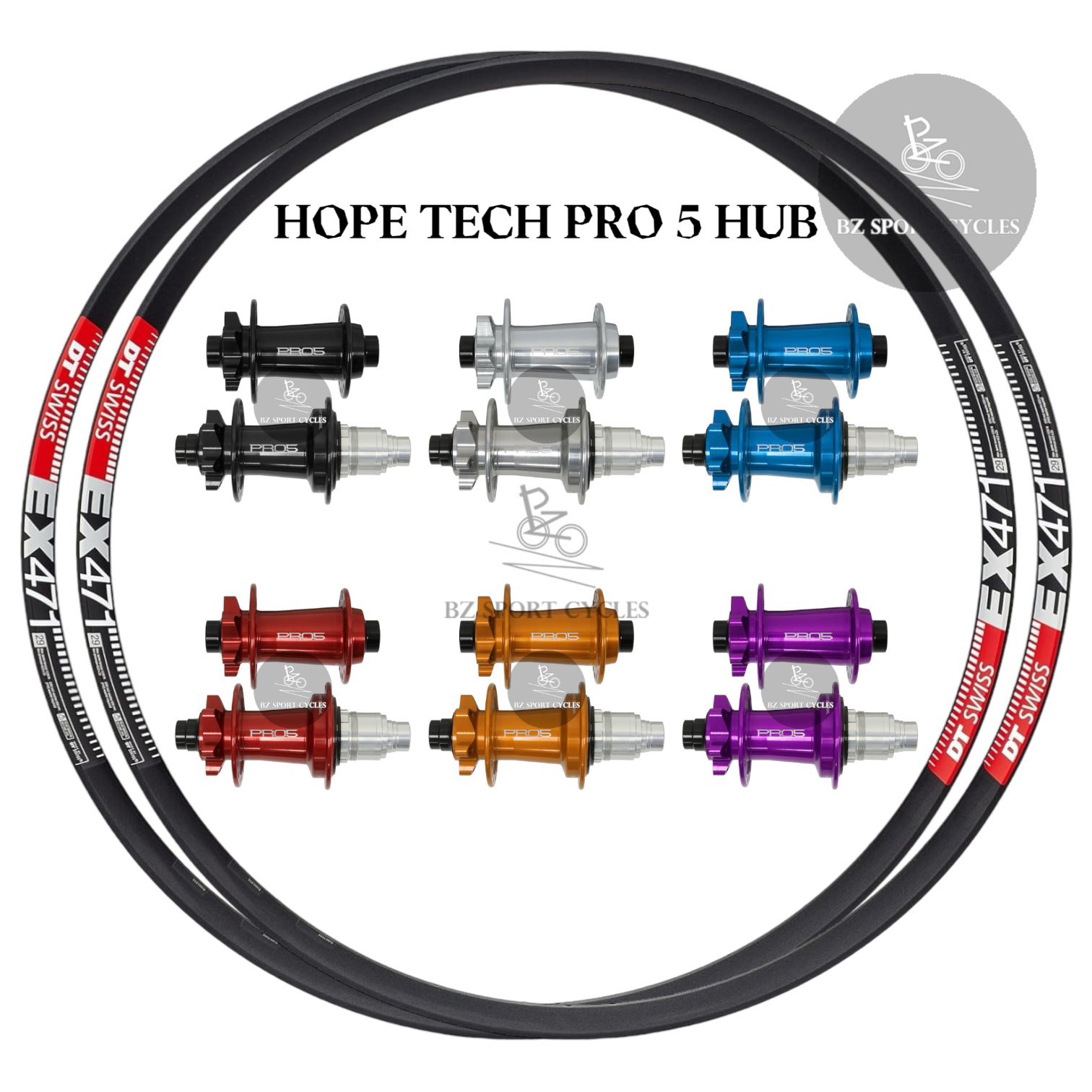

OPTION 2

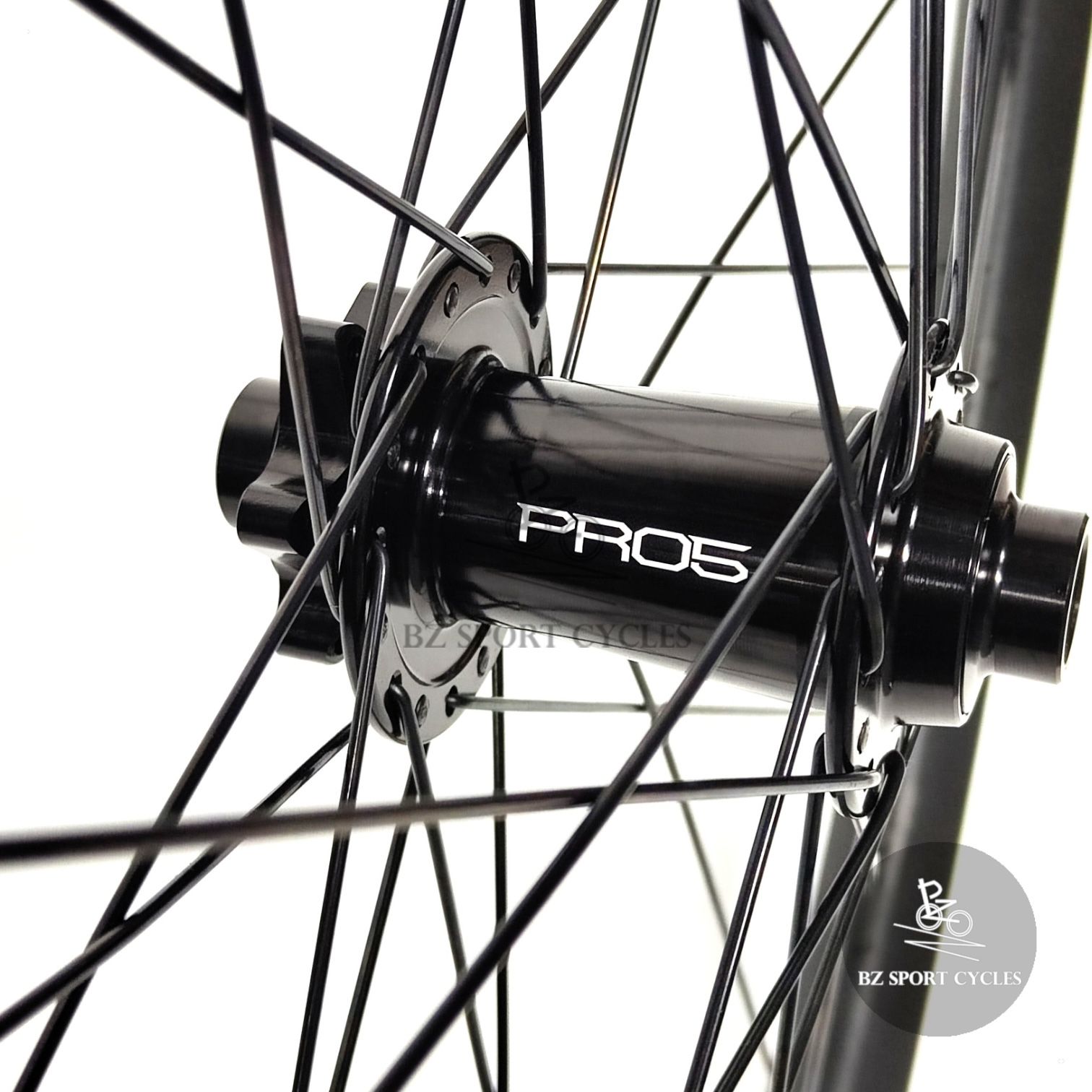

[Front Hub]

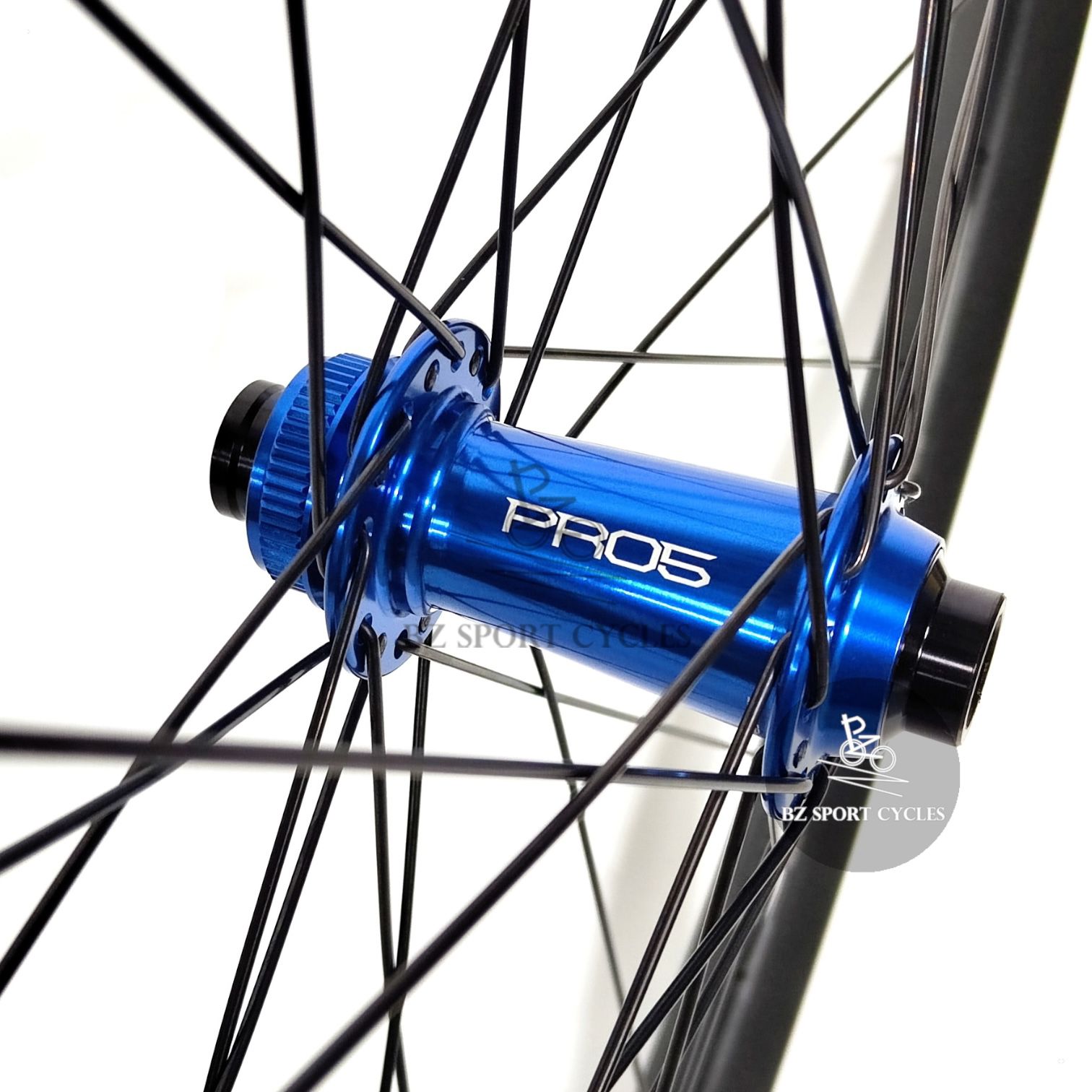

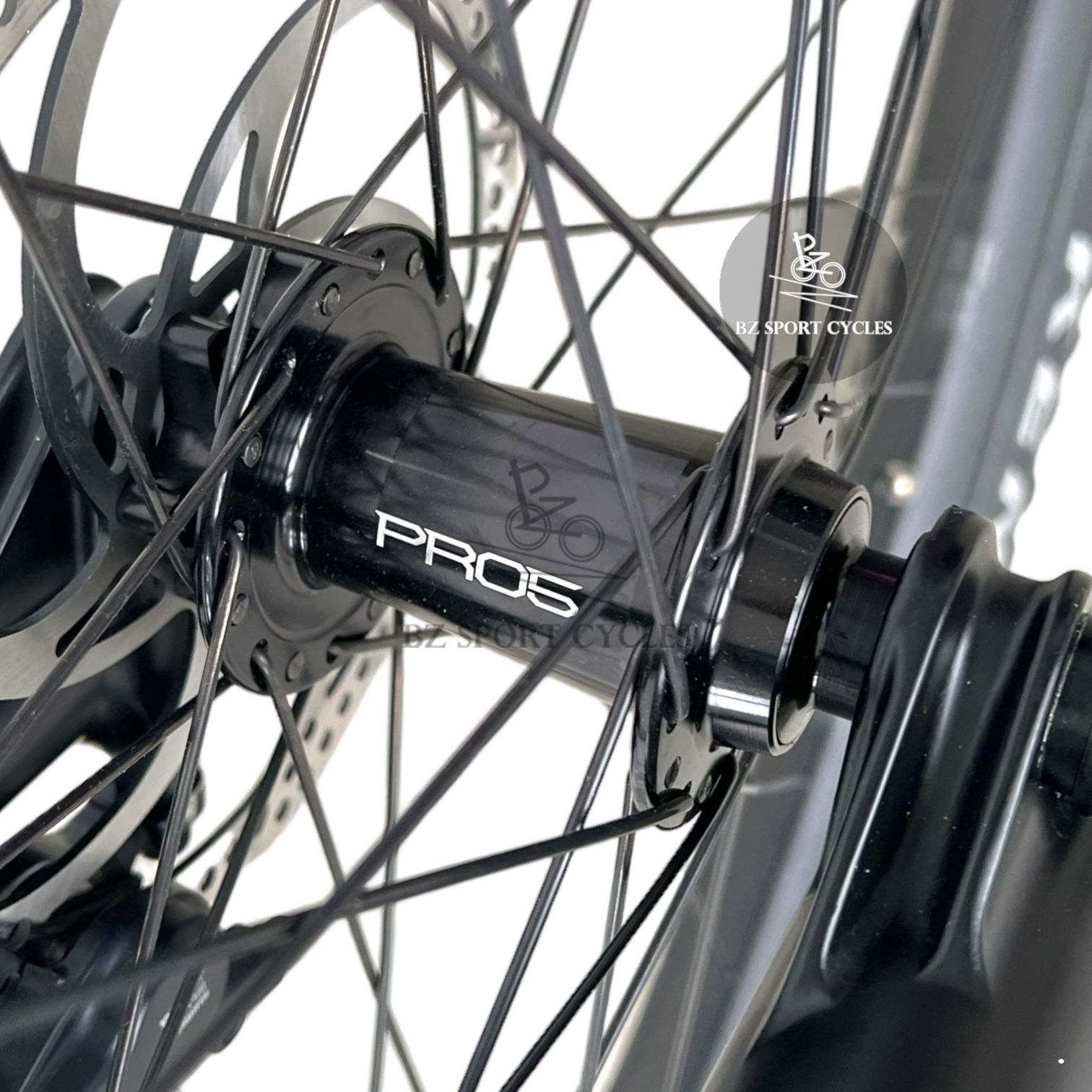

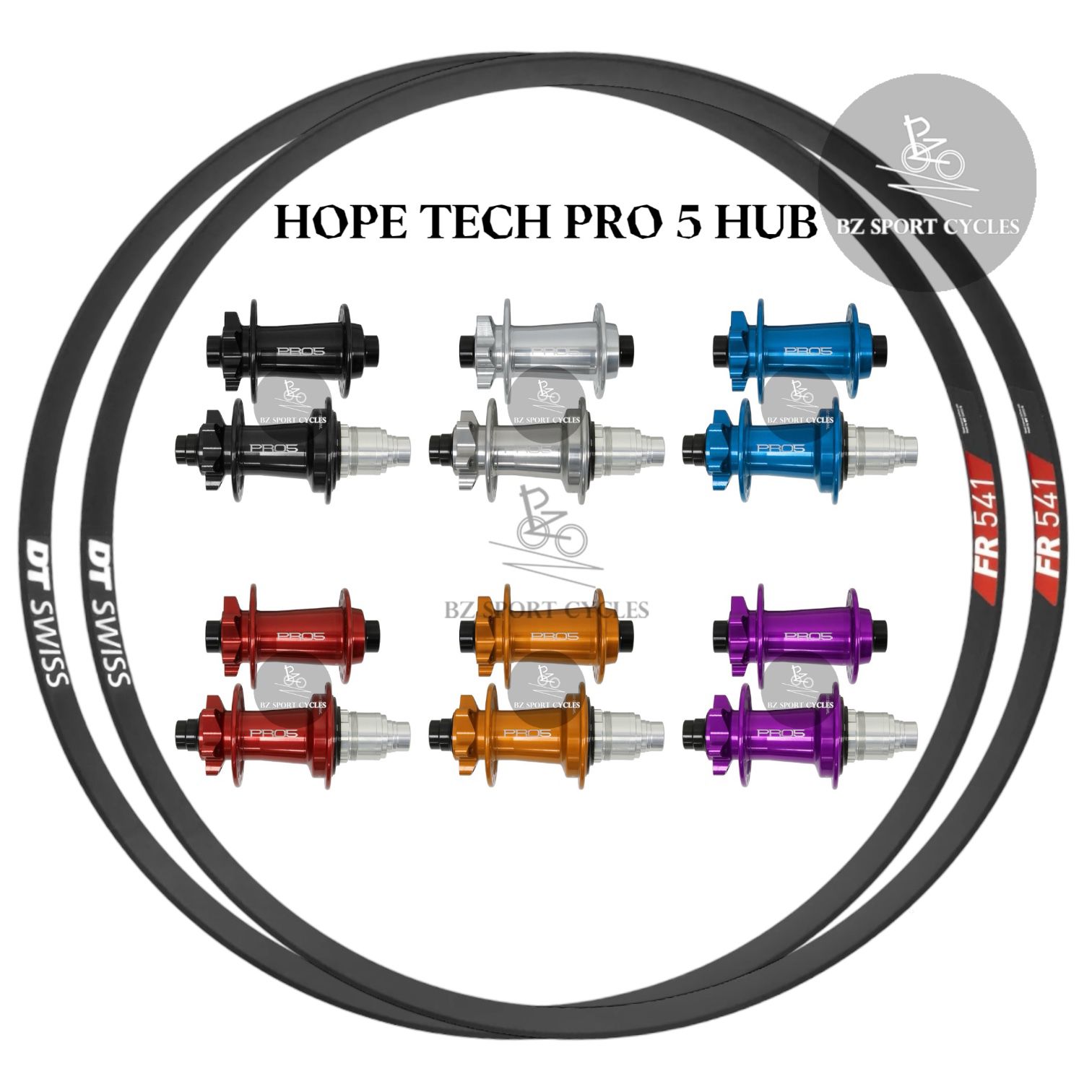

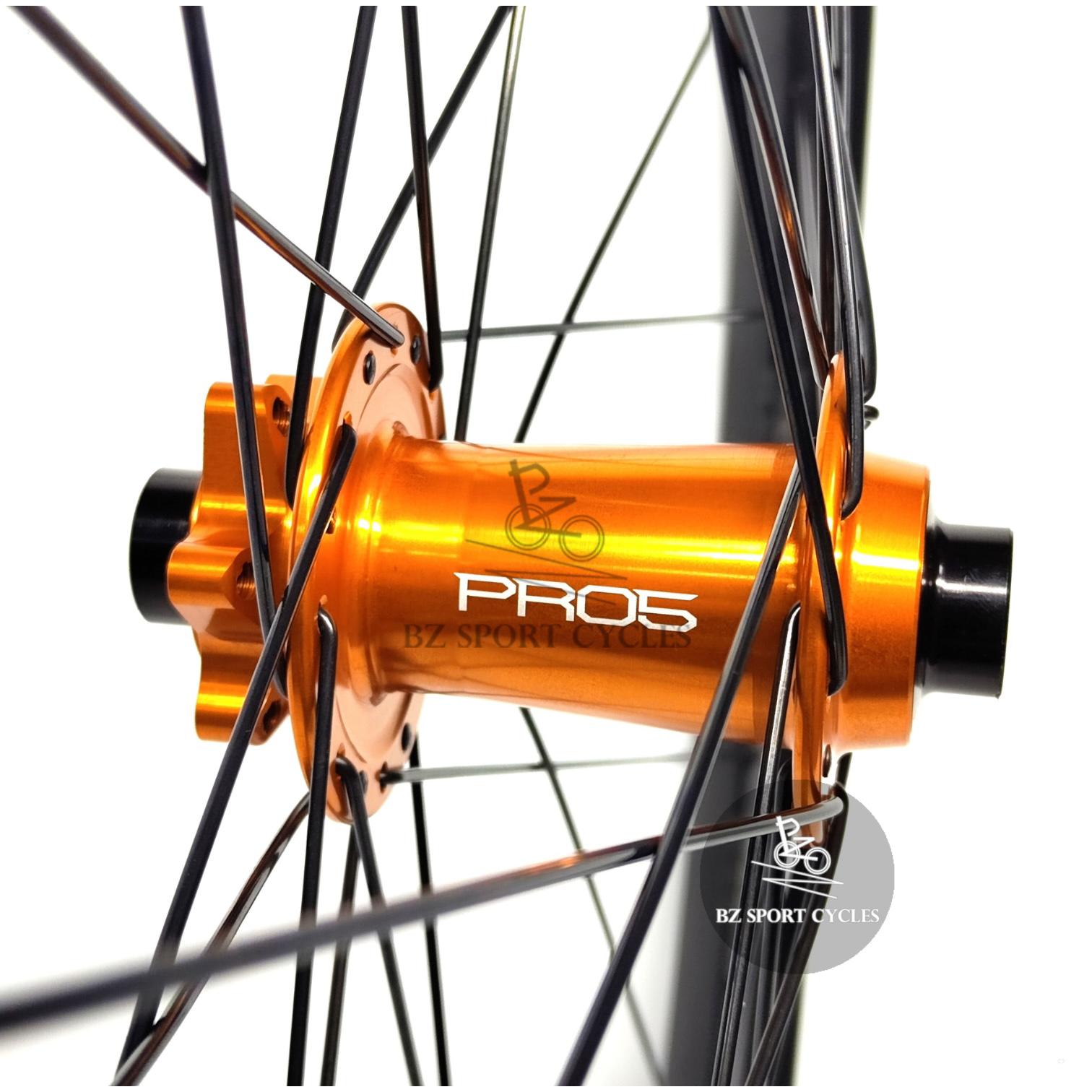

Brand/Model: Hope Tech Pro 5
Material: Aluminum
Disc Mount: 6-Bolt
Axle System: 15mm Thru Axle
Built-In Dimension: 100mm / 110mm Boost
Spoke Count: 32H
Colour: Black | Silver | Blue | Red | Orange | Purple

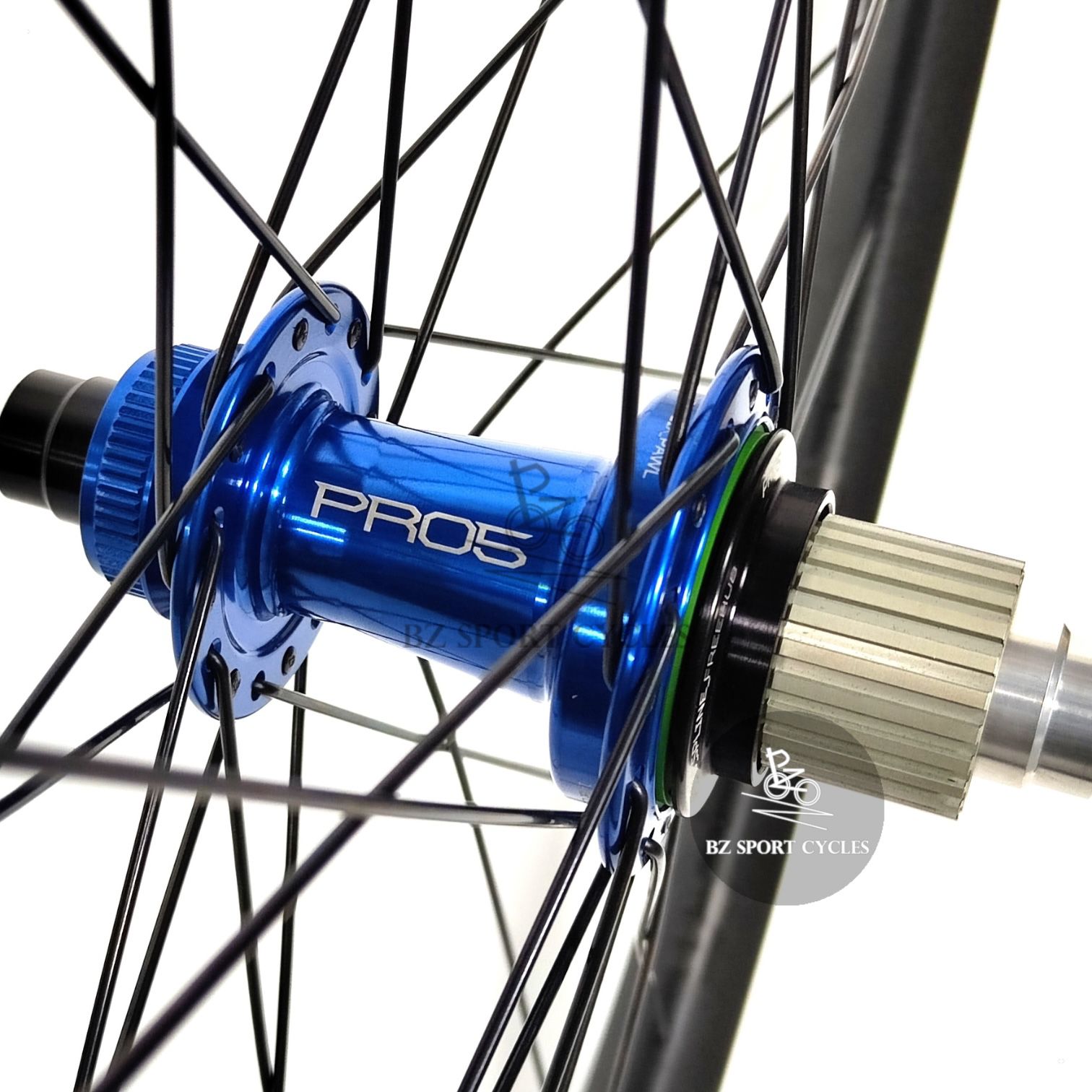

[Rear Hub]

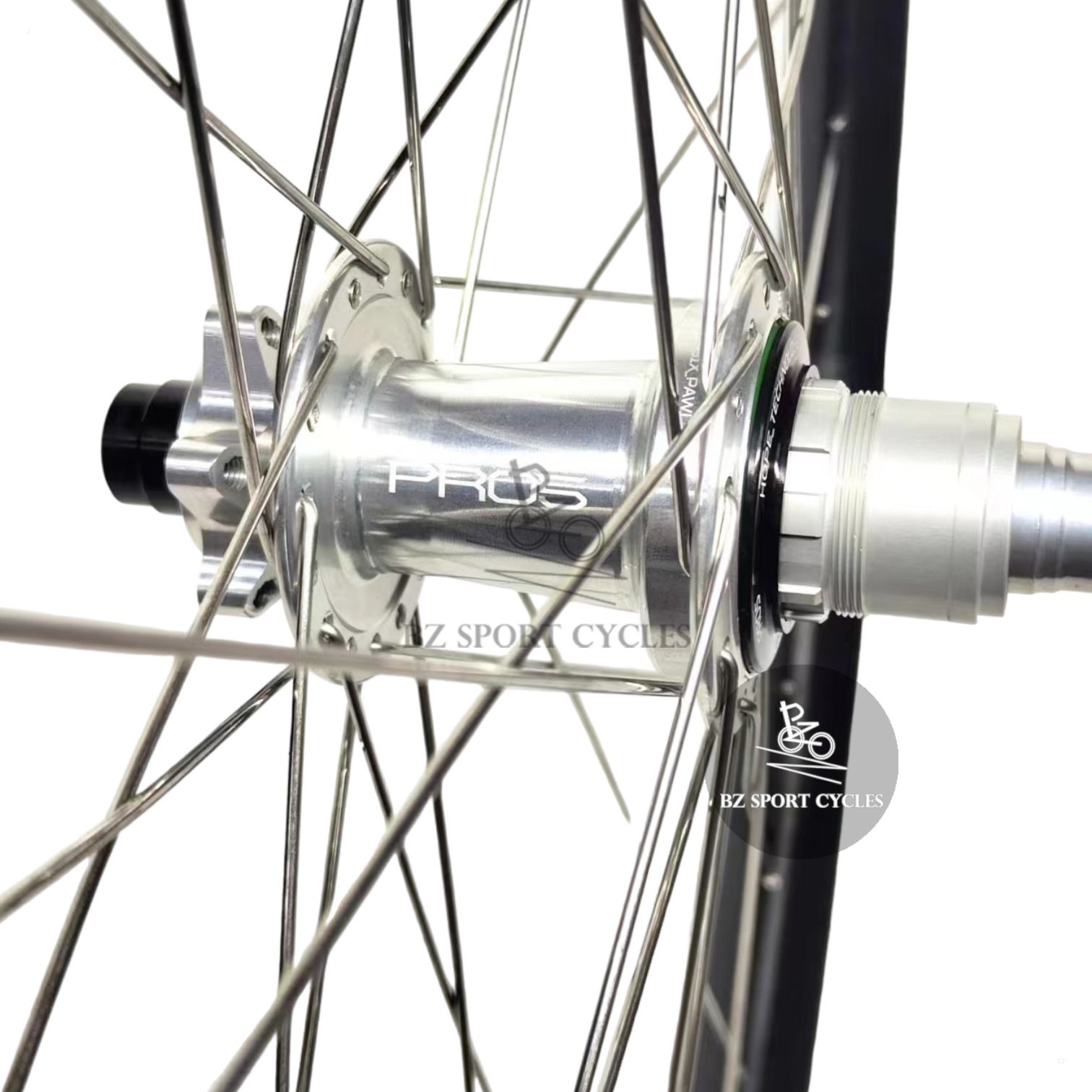

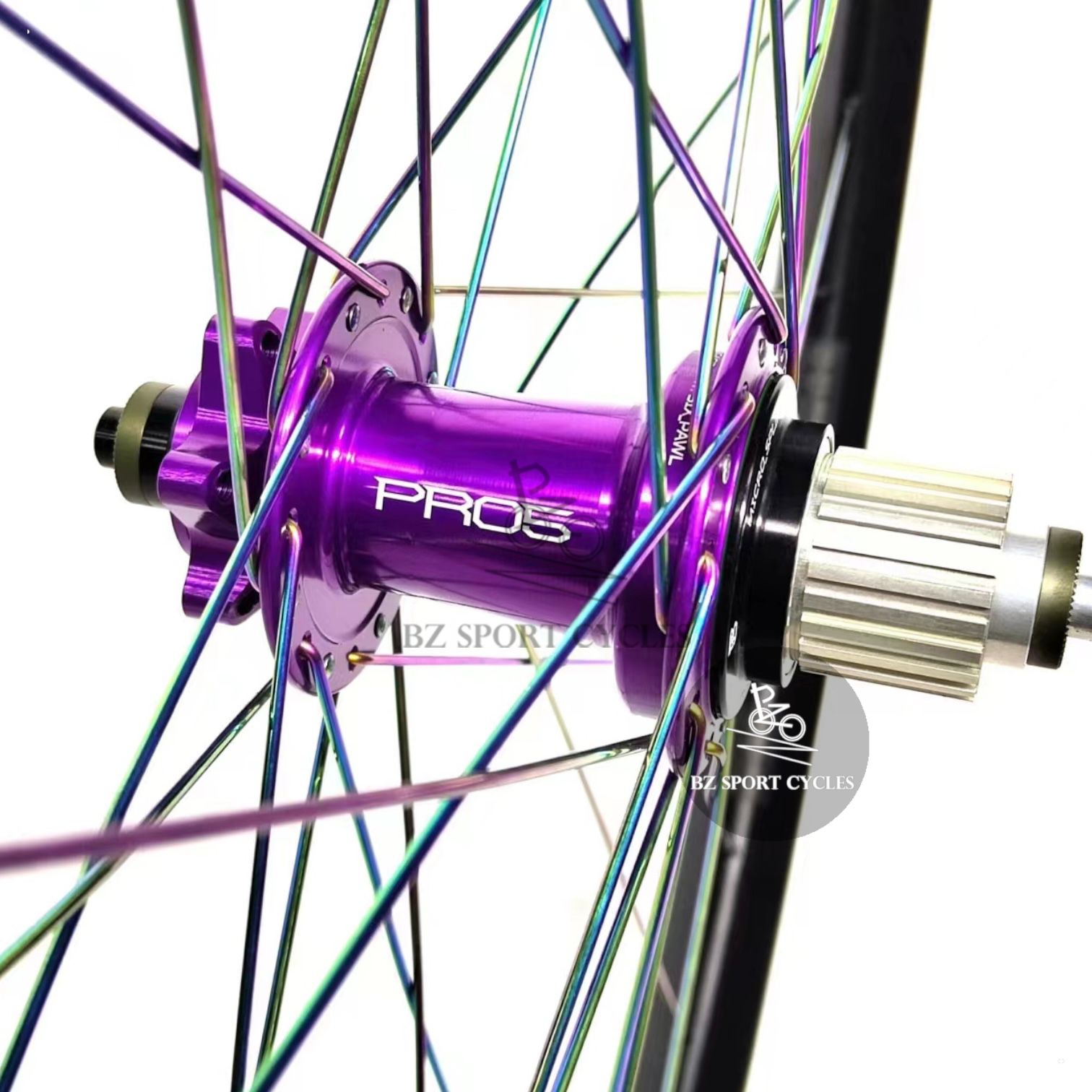

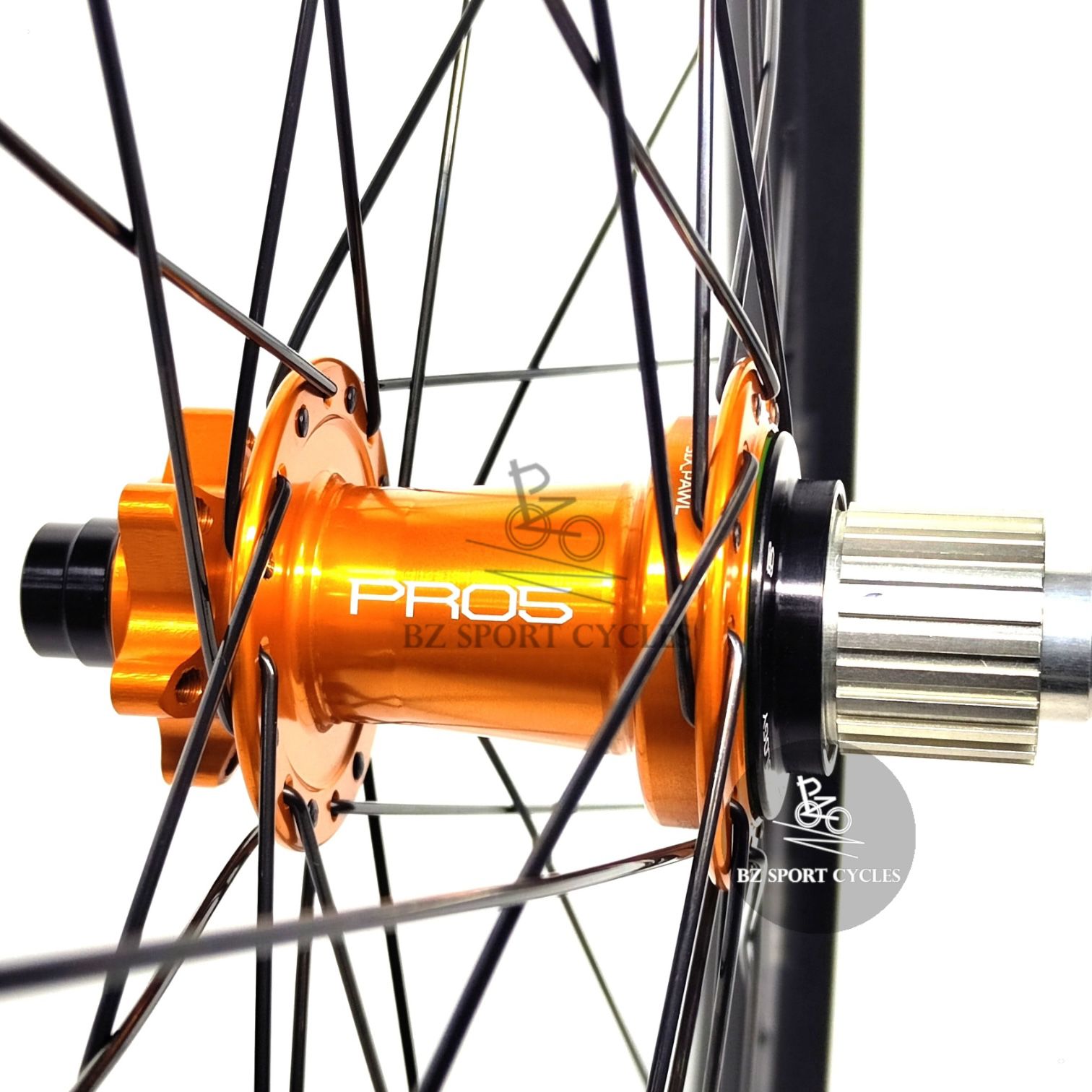

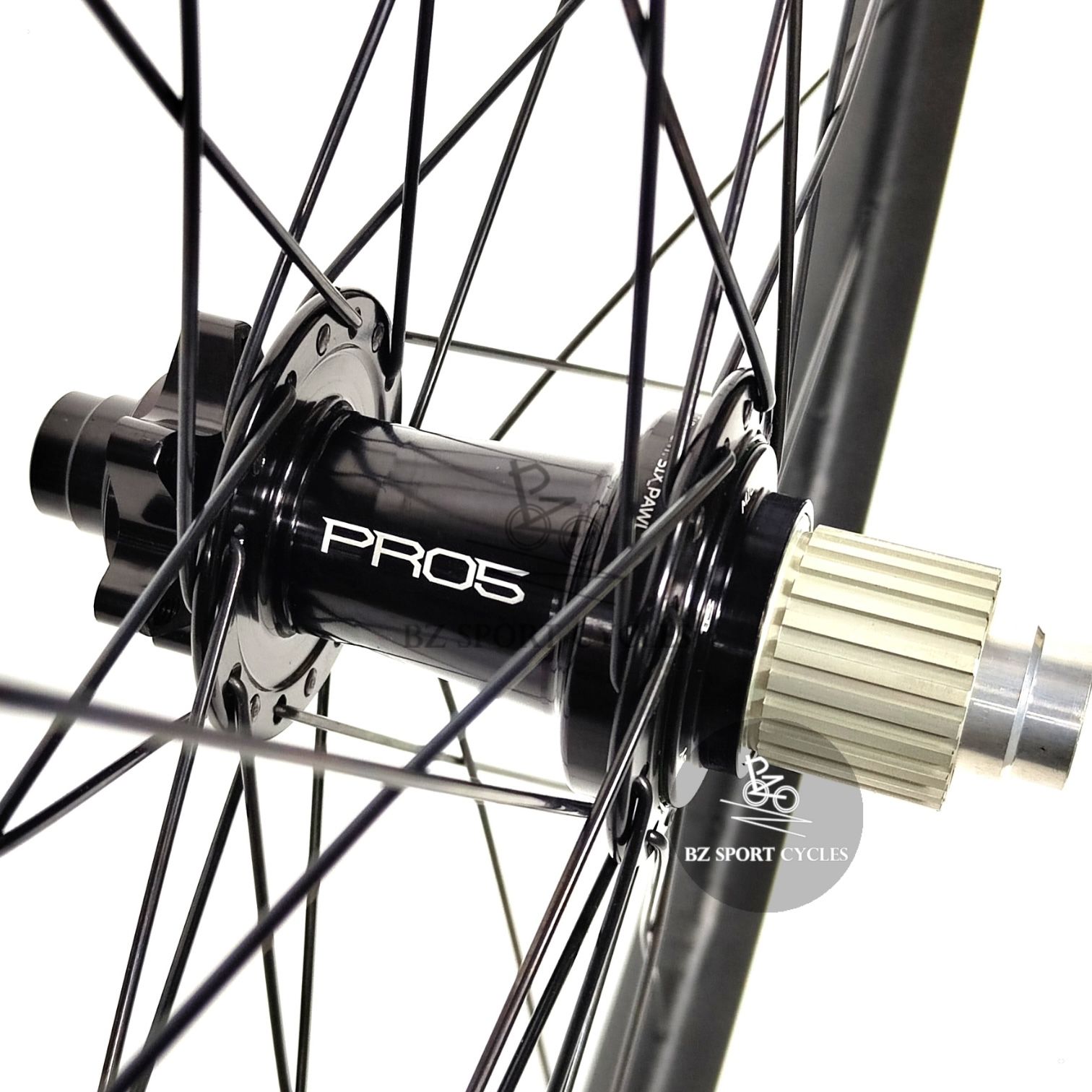

Brand/Model: Hope Tech Pro 5
Material: Aluminum
Disc Mount: 6-Bolt
Freehub System: 6-Pawl
Axle System: 10mm QR / 12mm Thru Axle
Built-In Dimension: 135mm / 142mm / 148mm Boost
Spoke Count: 32H
Colour: Black | Silver | Blue | Red | Orange | Purple
SPOKES
Brand/Model: DT Swiss Champion
Material: Stainless Steel
Spoke Head Type: J-Bend
Diameter: 2.0mm
Colour: Black
NIPPLES
Brand/Model: HT Spoke
Material: Brass
Colour: Black
Note: Wheels are build to order, please allow 2-3 weeks for delivery.
Learn more about BZ WHEELS.
Can’t find what you’re looking for? Need a more personalized advice? Feel free to contact us.
We are happy to assist you in determining the optimum combination of rims, hubs, spokes and nipples for a better riding experience.
